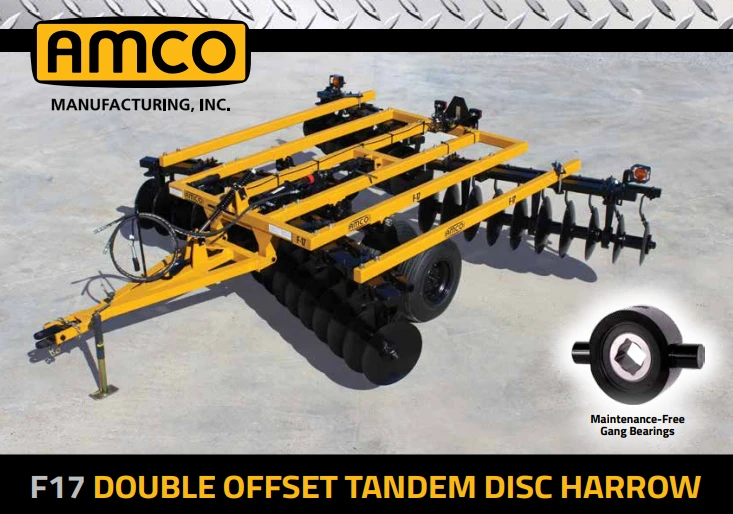

AMCO F17-3022 Tandem Disc Harrow 10’6″

For dependable seedbed preparation, you can rely on AMCO’s F17 Double Offset Tandem Disc Harrow. Built AMCO tough, the F17 opens and breaks up the surface, smoothing the soil so your ideal seedbed is ready for planting.
Since each farming operation is different, AMCO’s Double Offset Tandem Disc Harrow is available in a wide variety of sizes. Weighing between 296 and 337 pounds per cutting foot, the disc harrows are available in 9’3″, 10’6″, 12’0″, 13’6″, 15’0″, and 16’6″ models for use with tractors ranging from 68 to 176 engine horsepower. High-quality features are essential in today’s farming operation, and the F17 won’t disappoint.
Features include:
› Disc gangs feature maintenance-free bearings with three-year warranty; bearings eliminate possibility of contamination and need for re-lubrication
› Wear guards to protect bearing housing and zerk guards to protect grease fitting
› 1½” square, high-carbon, cold-rolled steel axles
› 70″ tongue jack with reversible clevis
› ³/16″ x 6½” x 8″, high-carbon steel, replaceable, adjustable scraper blades mounted on bars of 2½” x 2½” square tubing. The scrapers are attached to the 2½” x ½” thick arms with heavy-duty u-bolts
› Standard 22″ x ¼” plain blades on 9″ spacing
› Standard gang bolt wrench and a 4″ x 8″ (3,000 PSI) hydraulic cylinder with hoses to tractor
