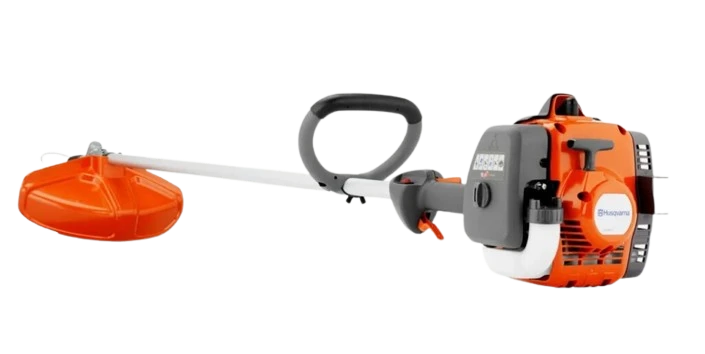

Husqvarna 122L Trimmer #970796102

Trimming is easy with the Husqvarna 122L. This straight-shaft string trimmer is easy to start, thanks to air purge and Smart Start technology. And it’s easy to use and maneuver, with intuitive controls and a lightweight design. The Tap ‘n’ Go trimmer head is easy to use and refill.

Features
Smart Start Technology
Specially-designed engine and starter for easy and fast starting with minimum effort

Quick Start with Air Purge
Air purge removes air from carburetor and fuel system for easy starting

Easy to Control
Simple to use and maneuver through yard

Lightweight Design
For more comfortable use

High Line Capacity
Tap ‘n’ Go trimmer head is easy to use and refill

Straight Shaft
Take advantage of extended reach

See-Through Fuel Tank
Easily check fuel level

Specifications
Capacity
Cutting width 17 in

Dimensions
Weight (excl. cutting equipment) 10.14 lbs
Product size length 67.44 in
Tube diameter 1 in
Product size height 11.54 in
Product size width 13.72 in
Tube length 57.677 in

Engine
Output shaft power1
0.8 hp
Cylinder displacement 21.7 cm³
Maximum rpm output shaft 7,200 rpm
Fuel tank volume 10.14 fl oz (US)
Fuel tank volume 0.3 l
Clutch engagement speed (±120) 4,200 rpm
Electrode gap 0.02 in
Fuel consumption 630 g/kWh
Idling speed 2,800 rpm
Maximum power speed 7,800 rpm
Spark Plug Husqvarna HQT-4 672201
Torque, max. 0.8 Nm
Torque, max. at rpm 6,000 rpm

Sound and noise
Sound pressure level at operators ear 85 dB(A)
Vibration
Equivalent vibration level (ahv, eq) front handle 2.95 m/s²
Equivalent vibration level (ahv, eq) rear handle 2.66 m/s²

Lubricant
Lubricant type (Engine) Husqvarna 2 stroke or equiv. at 50:1

Emission
Exhaust emissions (CO average) CARB 30.3 g/kWh
Exhaust emissions (CO average) EPA 254.87 g/kWh
Exhaust emissions (CO average) EU 230.89 g/kWh
